Model features:
- Patented smart freeze drying algorithm.
- Multiple drying methods for beginners and advanced users.
- Motorized ball valve for oil contamination prevention.
- RTD temperature sensors for drying assistance.
- Industrial grade glass-to-metal seal feed-through.
- Solid state relay for the heater. All replaceable relays.
- Stainless steel/aluminum construction for major parts.
- Independent vacuum valve for pressure normalization.
- Candy mode makes freeze-drying sweets easy and quick.
- Stainless steel drain line.
Model specifications:
- Ice capacity 14lb.
- Tray space 800 sq. inches.
- Process up to 18lb of food in one batch.
- Main drying time 16 – 30 hours for 8lb of food.
- Spacing between shelves 1.6 in.
- Include five trays as one set. Tray size 8 in. x 20 in. x 0.75 in.
- Shelf temperature setting range -50F to 150F.
- Freeze dryer weighs (vacuum pump excluded) 165lb.
- Freeze dryer dimension W 20 in. x D 26 in. x H 31 in.
- Freeze dryer cold trap (bottom of chamber) -40F.

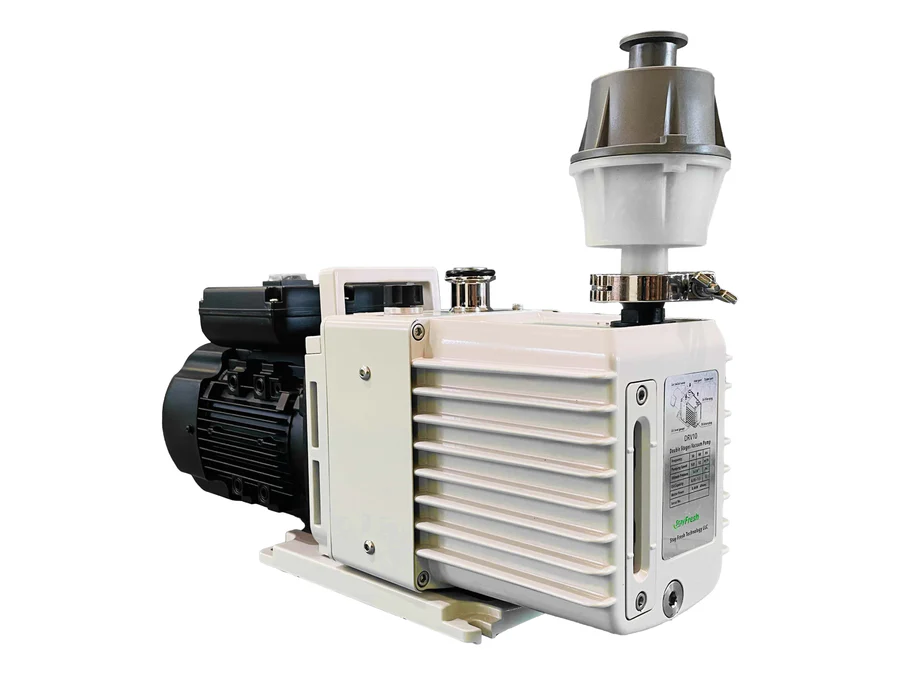

- Include a $1295 industrial pump.
- Vacuum pump weighs 55 lb.
- Vacuum pump dimension W 6.5 in. x D 20 in. x H 9 in.
- Oil mister filter dimension W 4 in. x D 4 in. x H 6 in.
- Vacuum pump flow rate 7.2CFM.
Installation requirement:
- A dedicated 15/20 Amp electrical outlet is recommended.
Free Accessories:
- An oil filter, an impulse sealer, and 50 mylar bags.
Shipping:
The freeze dryer is shipped in two boxes on a pallet: a 174lb freeze dryer box of size 25″x29″x36″, a 60lb vacuum pump box, and a 10lb accessory box. The pallet size 40″x26″x41″. The entire shipment weighs about 265lb.
| Trays: | 1 set of trays, 2 sets of trays |
|---|---|

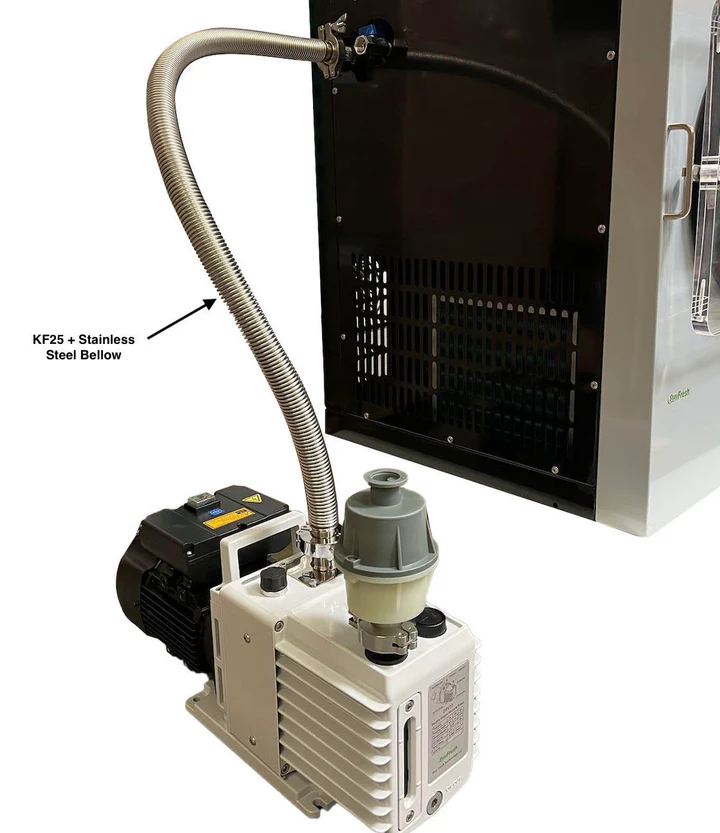

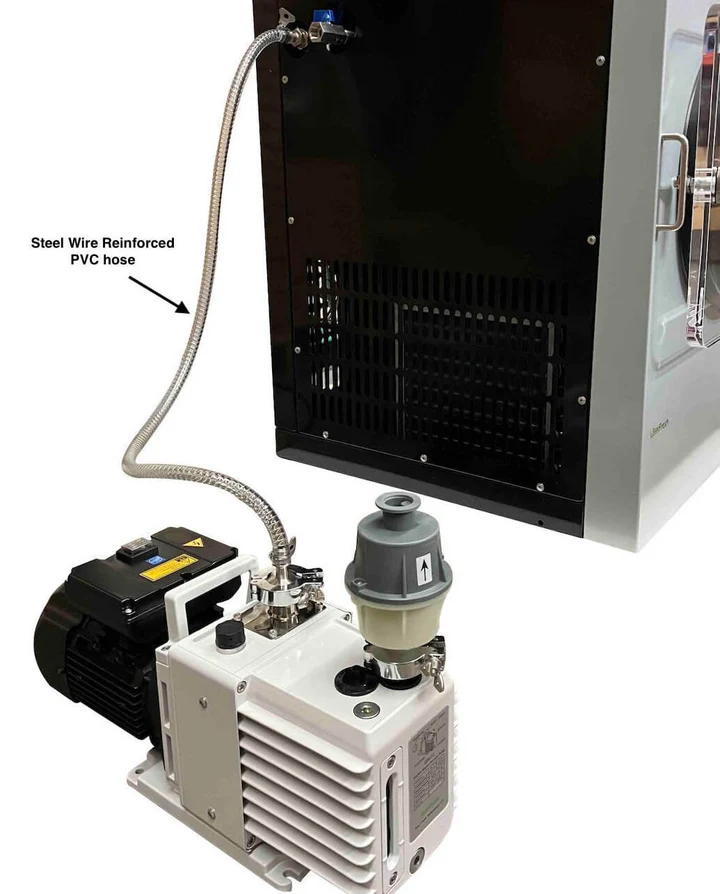

| Vacuum Hose: | Steel Wire Reinforced Hose, KF25 + Stainless Steel Vacuum Hose |
