Compressor/Condenser – NPT16LR – Large

Freeze Dryer Compressor/Condensor

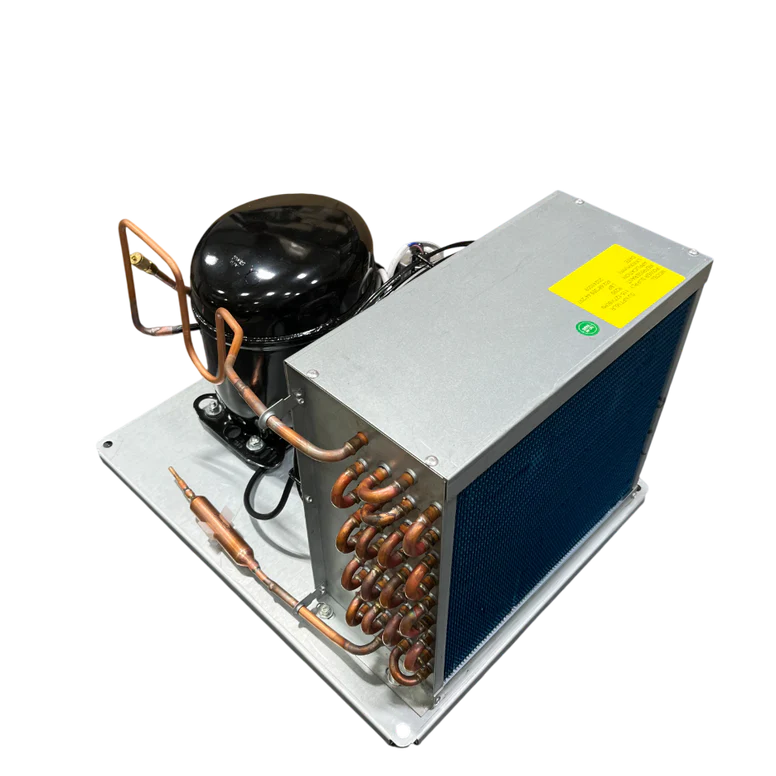

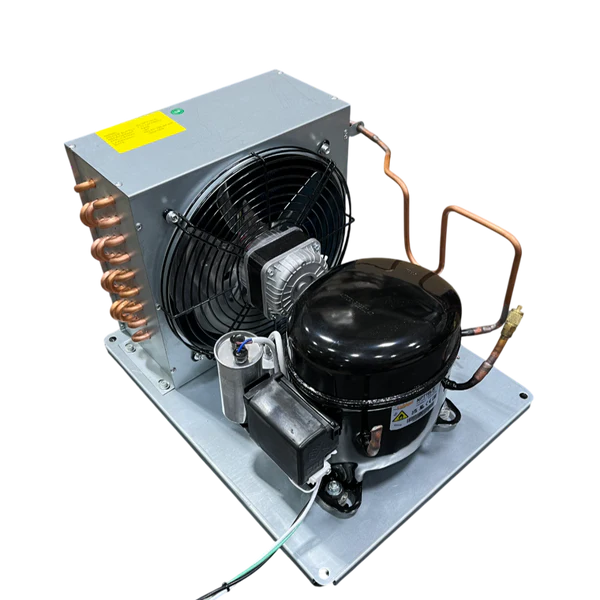

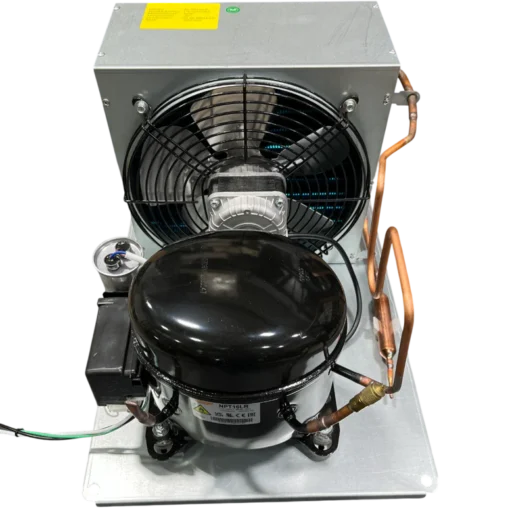

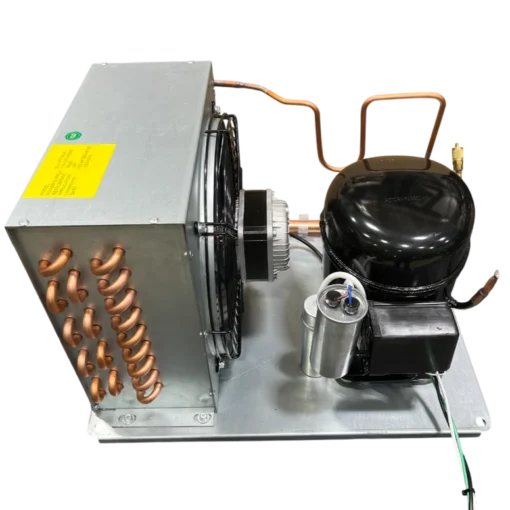

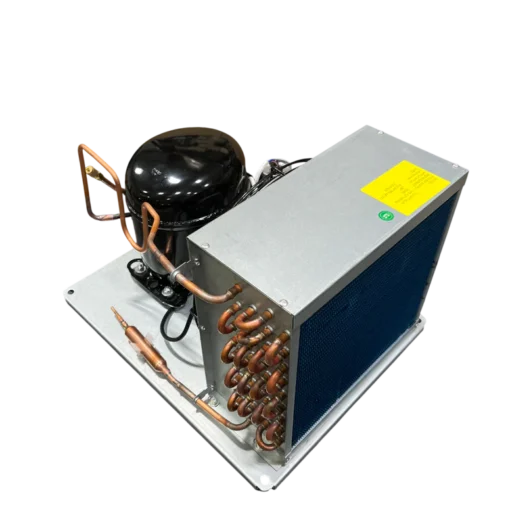

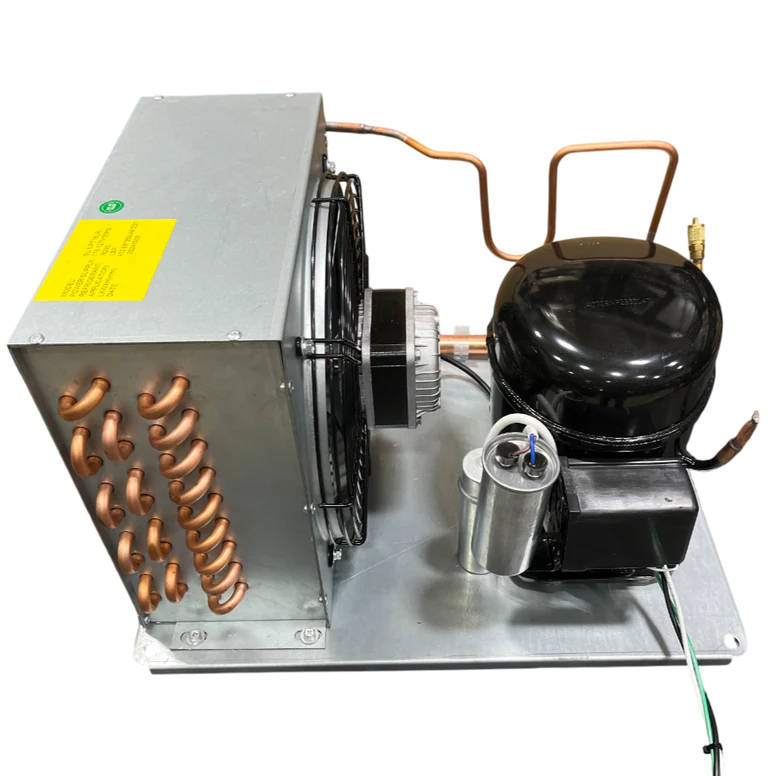

This complete compressor unit provides efficient refrigeration for LBP applications. It uses AC power with R290 refrigerant and ensures safe and reliable performance. The NPT16LR model is compactly designed and includes a condenser fan.

Specs:

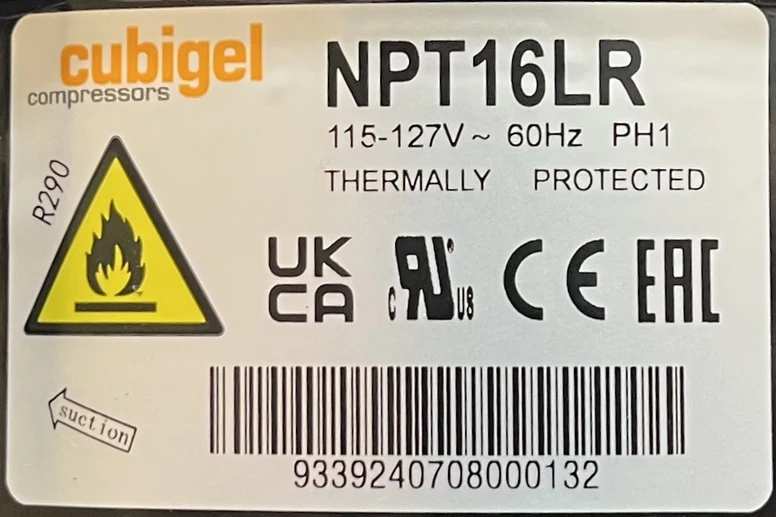

• Model: SU NPT16LR
• AC Power
• 115-127V 60Hz PH1
• Thermally Protected
• Refrigerant: R290
• Application Low Back Pressure (LBP)
• Dimensions: 452.68mm x 359.44mm x 297mm

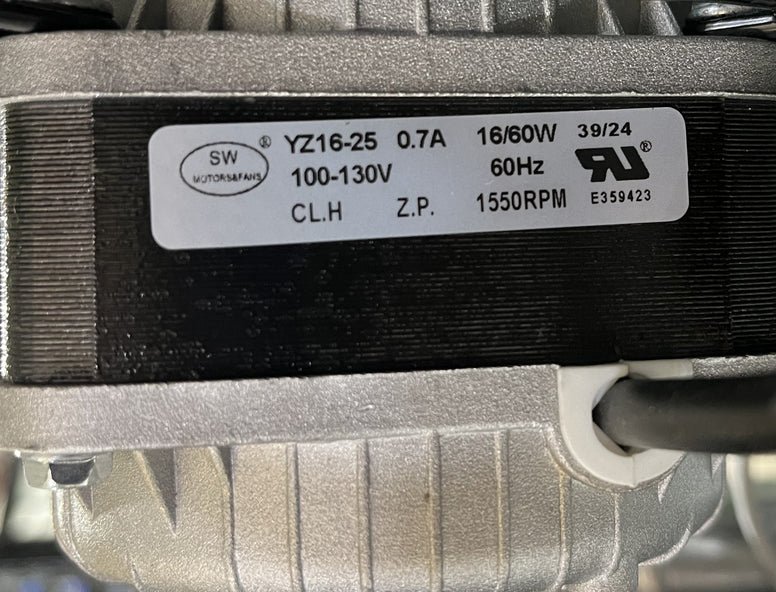

• Includes Condenser Fan

Legal Disclaimer

WARNING: Professional Installation Required
This compressor must be installed by a certified refrigeration technician. Improper installation, maintenance, or repair of this equipment can result in serious injury, equipment failure, property damage, or even fatality. For safety, only certified technicians with knowledge of refrigeration systems should perform installation or replacement.

Warranty

We do not warranty this part. For warranty questions, you will have to contact the manufacturer.
