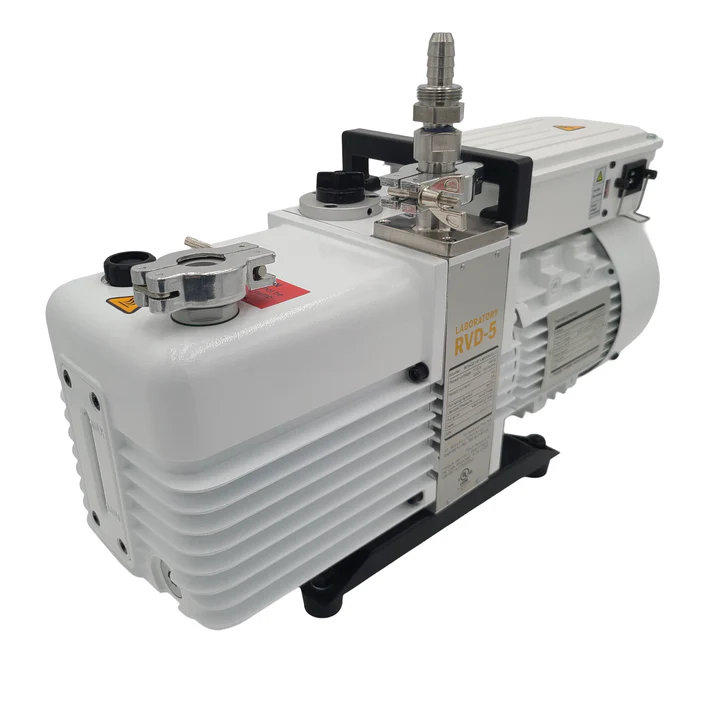

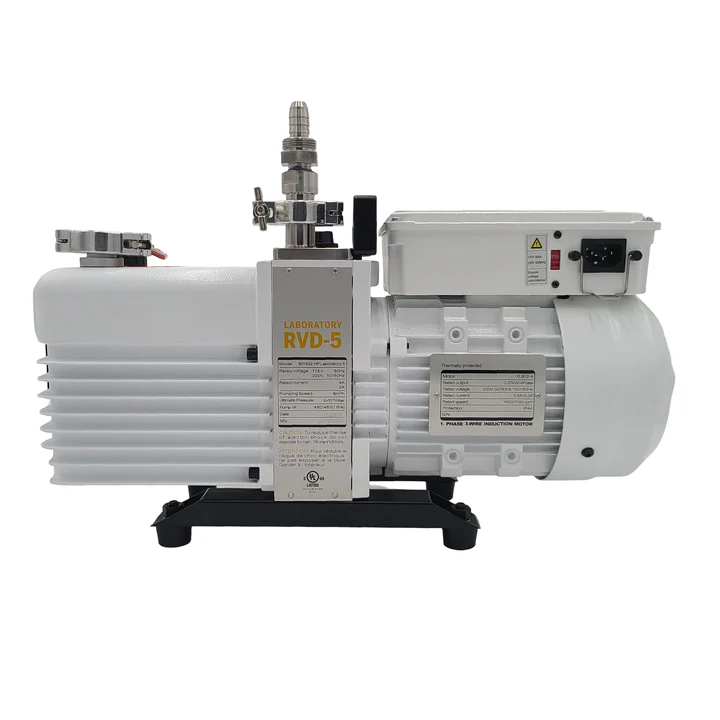

Commercial Freeze Dryer Vacuum Pump – 4 CFM

Commercial KF16 Freeze Dryer Vacuum Pump

Blue Alpine’s commercial freeze dryer vacuum pump is the perfect choice for anyone who is processing freeze dried food on a professional or semi-professional scale. The CFMs of a vacuum pump only affect the initial pump downtime. What is more important is a pump’s ability to pull deeper. Even though the commercial freeze dryer pump only has 4CFMs, it will actually get food done faster because it can pull a deeper vacuum during the freeze drying process. This is true for any vacuum pump on the market, not just the pumps available from Blue Alpine.

Specs:

• Dimensions: 18.2*5.7*8.2 in  (460*144*207 mm)
• Flow Rate: 4.0 CFM
• Amp Draw: 4A
• Type: Dual-Stage Rotary Vane
• Oil type (NPO): 46H (Mineral)
• Ultimate Vacuum: 15 microns
• Power: 110V
• Weight: 42 lbs
• Solinoid: Anti suck back design
• Connection Fitting: KF16
• Noise Level: ≤ 60 dB

Compatibility:

This vacuum pump can be used with any freeze dryer. However, an adapter is required to use this pump with other brands of freeze dryers.

Harvest Right Adapter

This adapter attaches to your Harvest Right freeze dryer. A 3-foot Blue Alpine vacuum hose is included in this option since the Harvest Right’s vacuum hose is not compatible with the fitting.

Includes:

• Brass 3/4 inch JIC to14mm barb adapter
• 3-foot silicone vacuum hose
• 2 vacuum and drain hose spring clamps

*Adapters, longer Vacuum Hose lengths, and Spring Clamps can be purchased separately*

Setup Instructions

Follow the link to view the setup video https://youtu.be/Ro_XxgnEU0g

1-Year Warranty
